Air Jet
C.C. Steven, your ANSWER to compressed air challenges.

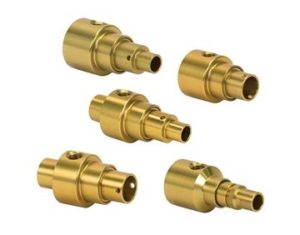

AIR JETS
PRODUCT OVERVIEW
Jets are round-throated air amplifiers: one end provides a strong airflow while the other creates suction as free air is entrained. As the free air is entrained, jets amplify air volume up to 25 times more than the compressed air supplied, resulting in less compressed air usage to deliver the same or greater thrust performance.
Jets are designed to reduce compressed air consumption and noise drastically as compared to open jets, copper tubes and iron or steel pipes without an engineered nozzle. Perfect for all types of blow off, conveying, cooling and drying applications, jets are available in a variety of high and low thrust models. Since they output a more concentrated, targeted volume of air than nozzles, they are ideal for water, solvents or light oil stripping applications. Additionally, because they deliver a precise air flow, jets are ideal for parts movement and ejection, with a focused air flow targeted directly on the parts being moved or ejected. Vortec Jets meet OSHA specification for noise and dead-end pressure.
BENEFITS
- Convey small parts without motors or pumps
- Save time with better blow off capability
- Up to 25 times blow off power compared to compressed air alone
- Reduce operating costs due to compressed air usage by up to 75%
- Reduce noise levels by up to 70% compared to non-amplifying jets
FEATURES
- Wide range of designs and force/thrust levels
- Several suction and outlet options
- Adjustable jets enable varying power/thrust levels for each application
- Power/thrust levels ranging from 2 – 17 oz-force
- Air stream sizes at nozzle ranging from 3/16” to 1”
- Low noise levels, ranging from 65 to 80 dBA.
- Output thrust can be varied on all 901 units by changing or adding an internal shim. Larger shims give more blow off force. Contact Vortec for details.
Transvector Energy Saving Blowoff Air Jets
Air Jets are designed to reduce compressed air consumption and noise drastically compared to other open jets. Transvector air jets are round throated air amplifiers; one end provides a strong airflow while the other creates suction as free air is entrained.
To accomplish these impressive air savings, we incorporate proven Transvector amplification principle in our air jet designs. When compressed air enters the air jet, it fills a chamber with only one exit path — a 0.002” (0.051mm) annular orifice. As air passes through this orifice, it accelerates to 1000 feet (304.8m) per second, entraining free surrounding air as it exits. The result is airflow volumes up to 25 times more than compressed air supplied — more work done with less air consumed.
DESCRIPTION
Vortec Transvector Blowoff products use the proven Transvector impulse principle to reduce noise and compressed air consumption while delivering the same results as open air jets. Amplification ratios of up to 25 times greater than the compressed air consumption enable Transvector Blowoff products to produce enormous energy savings. Plant wide conversion can result in reduced capital expenditures for additional compressors. For example, a 1/4” diameter open jet can consume the entire SCFM of a 10 HP compressor at 100 PSIG. Conversely, Transvector Blowoff products considerably less SCFM than open air jets and meet OSHA requirements.
IMPULSE PRINCIPLE AT WORK
Transvector Jets and Blowoff Nozzles use the same impulse principle described in the Round Transvector section. Compressed air is released at sonic velocity through an annular orifice 0.002”. As the air passes through the orifice, it collides with surrounding air inducing and entraining a much larger mass of air. Blowoff nozzles are designed to maximize the speed of compressed air enabling it to move large masses of secondary air.
TRANSVECTOR BLOWOFF PRODUCTS
Transvector Blowoff products are available as Jets or Nozzles to meet the needs of different applications. Transvector Jets have a round throat design which is similar to the larger Transvectors. Ideal for parts ejection and other heavy-duty blowoff applications, Transvector Jets can also be used for air conveying and spraying. Transvector Nozzles provide greater flow amplification with slightly less thrust. Nozzles are ideal for clustering in tight spaces, close to a target because the inlet and outlet are on the same center line.
The flow of all Transvector Nozzles and Jets can be varied by regulating the compressed air line pressure. Several units can also be adjusted for different flows, irrespective of line pressure.

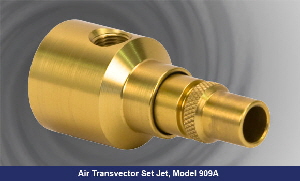

The Model 909 Transvector Set Jet has a micrometer dial for easy manual adjustment of the airflow. Greater flow provides more thrust and effective range. The adjustable flow feature allows you to position the Transvector in a location that is most convenient, then adjust the flow for minimum air consumption to accomplish your blowoff objectives.

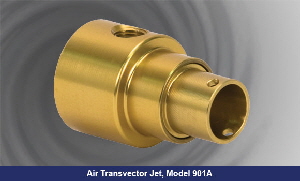

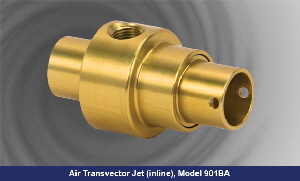

The Models 901, 901B, and 901D are also adjustable for flow. These models are designed with a two piece body that can be unscrewed, allowing you to add gap shims. Adding gap shims increases the opening of the annular orifice from the factory setting. As the compressed airflow through the nozzle increases, so does the force and range of the amplified airflow.
SPECIFICATIONS

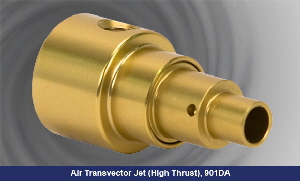

| Model# | 901A | 901DA | 901BA | 901HA | 909A |
|---|---|---|---|---|---|
| Application | Blow Off & Cooling | Blow Off, focused output | Conveying | Conveying | Blow Off, adjustable |
| Ducting? | No | No | Yes | Yes | No |
| Duct Diameter, inch | N/A | N/A | 0.75 | 0.75 | N/A |
| Thrust, oz | 6 | 14 | 6 | 14 | 2-17 |
| Air Amplification, Unducted | 25 | 25 | 25 | 25 | 25 |
| Air Amplification, Ducted | N/A | N/A | 4 | 4 | N/A |
