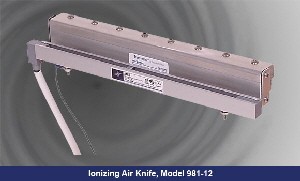

Ionizing Curtain Transvector Airflow Amplifiers Model 981-X

Ionizing Curtain Transvector Airflow Amplifiers    – NO LONGER AVAILABLE; CALL FOR REPLACEMENT OR ANY TECH QUESTIONS

Ionizing Curtain Transvectors neutralize static electricity, prevent electrostatic discharge and blow away unwanted particles with a powerful laminar flow of air. The Ionizing Curtain Transvector’s Static Neutralizing Bar creates positive and negative charged ions and delivers them to your product in a uniform sheet of air.

Features:

• Clean while neutralizing static charges
• Same design features as our Curtain Transvectors
• Includes a Static Neutralizing Bar (Model MEB) coupled to a Curtain Transvector

Model 981-X specifications

Model #: 981-6 Ionizing Curtain Transvector (6″ lg), requires AC power supply: 1/4″ NPT(F) inlet (1)

At 100 PSIG
Air Consumption: 32 SCFM
Velocity at 2”: 20,200 FPM
Velocity at 6”: 14,200 FPM
Velocity at 12”: 10,000 FPM

At 30 PSIG
Air Consumption: 11 SCFM
Velocity at 2”: 12,500 FPM
Velocity at 6”: 5,100 FPM
Velocity at 12”: 3,700 FPM

Required products: D167RY OR F167, Recommended products: 701S-36A

Model #: 981-12 Ionizing Curtain Transvector (12″ lg), requires AC power supply: 1/4″ NPT(F) inlet (1)

At 100 PSIG
Air Consumption: 64 SCFM
Velocity at 2”: 20,200 FPM
Velocity at 6”: 14,200 FPM
Velocity at 12”: 10,000 FPM

At 30 PSIG
Air Consumption: 23 SCFM
Velocity at 2”: 12,500 FPM
Velocity at 6”: 5,100 FPM
Velocity at 12”: 3,700 FPM

Required products: D167RY OR F167, Recommended products: 701S-36A

Model #: 981-18 Ionizing Curtain Transvector (18″ lg), requires AC power supply: 1/4″NPT(F) inlets (2)

At 100 PSIG
Air Consumption: 95 SCFM
Velocity at 2”: 20,200 FPM
Velocity at 6”: 14,200 FPM
Velocity at 12”: 10,000 FPM

At 30 PSIG
Air Consumption: 34 SCFM
Velocity at 2”: 12,500 FPM
Velocity at 6”: 5,100 FPM
Velocity at 12”: 3,700 FPM

Required products: D167RY OR F167, Recommended products: 701S-40A

Model #: 981-24 Ionizing Curtain Transvector (24″ lg), requires AC power supply: 1/4″NPT(F) inlets (2)

At 100 PSIG
Air Consumption: 127 SCFM
Velocity at 2”: 20,200 FPM
Velocity at 6”: 14,200 FPM
Velocity at 12”: 10,000 FPM

At 30 PSIG
Air Consumption: 45 SCFM
Velocity at 2”: 12,500 FPM
Velocity at 6”: 5,100 FPM
Velocity at 12”: 3,700 FPM

Required products: D167RY OR F167, Recommended products: 701S-40A
